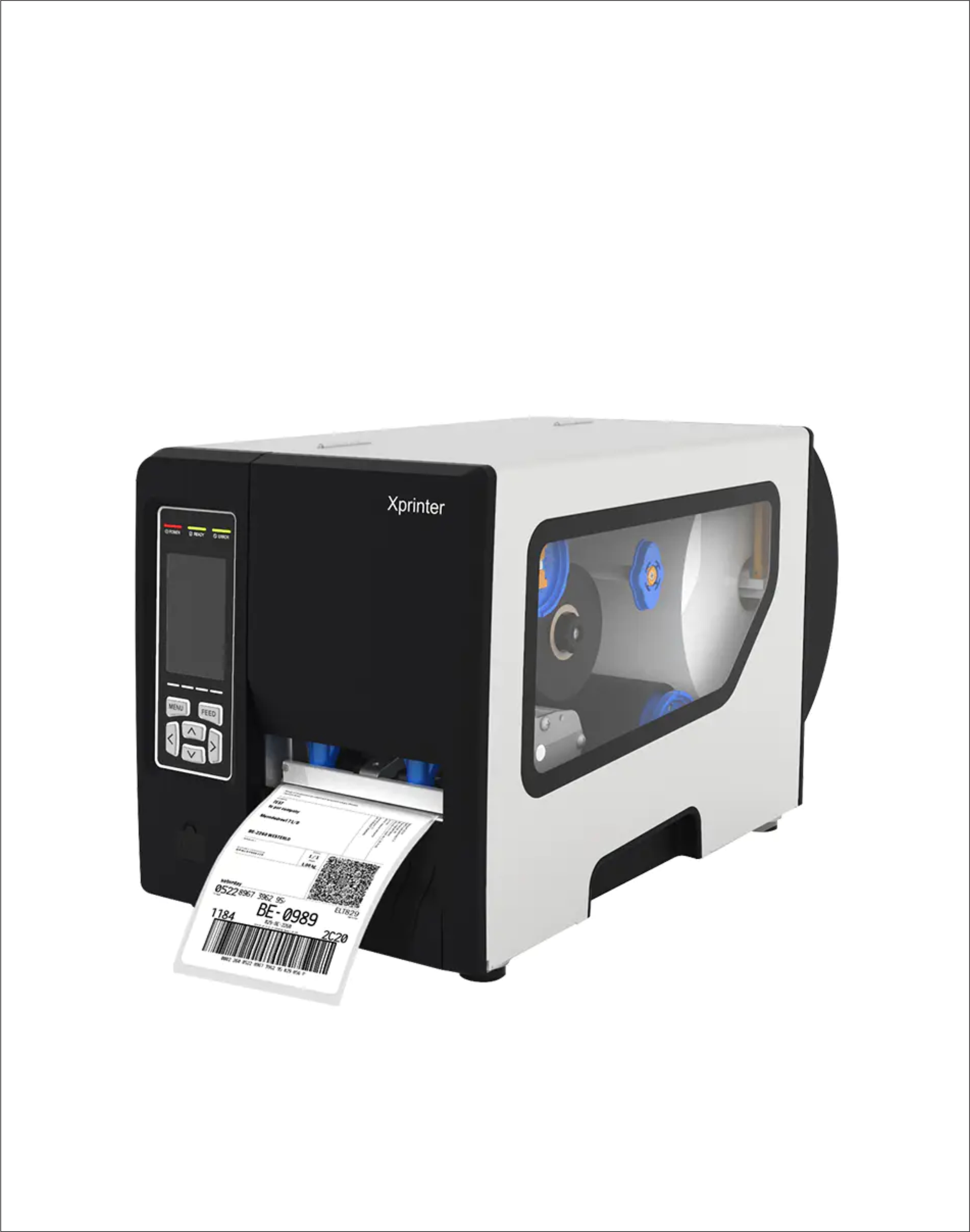

Xprinter-G480E barkod printeri sənaye sahələrində geniş istifadə olunur. Kritik sənaye proseslərinin əməl olunmasında effektivliyi heç bir zaman itirməyən, yenilənmiş və artırılmış sürəti ilə müəsissələrin əsas seçimidir.
| Printer Specifications | |
| Resolution | 300 DPI |
Print Method | Thermal Transfer / Direct Thermal |
| Memory | 128 MB RAM / 128 MB Flash |
| Max.Print Width | 4.09 in./104 mm |
| Max.Print Speed | Up to 8 ips (203 mm/s) |
| Media Sensors | Movable Black Mark Sensor / Movable Gap Sensor |
| Emulation | TSPL, ZPL, EPL, DPL |
| Interface | USB+Serial+Lan, USB+Serial+Lan+Parallel+GPIO(Optional Wireless Connectivity: Bluetooth / Wi-Fi) |
| Display Screen | 3.5" LCD, 320*480 pixel |
| Others | Optional RTC, Standard SD Card Slot |
Media and Ribbon Characteristics | |
Media Length | 0.39 in. ~ 35 in. (10 mm ~ 889 mm) |
Media Width | 0.78 in. ~ 4.7 in. (20 mm ~ 120 mm) |
Media Roll Size | 8 in./203 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm) |
Media Thickness | 0.0023 in. (0.06 mm) Min.; 0.01 in. (0.254 mm) Max. |
Media Types | Continuous, Gap, Black mark, Fan-fold, Perforated Media |
| Ribbon Outside Diameter | 3.58 in. / 91 mm |
| Max. Ribbon Length | 600 Meters (1968 ft.) |
| Ribbon Width | 0.78 in. ~ 4.3 in. (20 mm ~ 110 mm) |
| Ribbon Core l.D. | 1 in. / 25.4 mm |
Environment Condition | |
Operating Temp. | 5~40℃(41~104℉) |
Storage Temp. | -40~60℃(-40~140℉) |
Operating Humidity | 25 ~ 85% Non-Condensing |
Storage Humidity | 10 ~ 90% Non-Condensing |
Fonts/Graphics/Symbologies | |
1D Bar Codes | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
2D Bar Codes | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
Fonts and Graphics | Font 0 ~ Font 8 |
Software | |
Driver | Windows /Linux /Mac / Android / Chrome OS |
SDK | Windows/Linux / Android /iOS |
Software | Bartender UltraLite / Mobile Label Design App |
Accessories | |
Standard Accessories | Power Cord, USB Cable, User Manual, CD, Ribbon Spindle*2, Ribbon For Test, Ribbon Paper Core, Label Roll For Test |
Factory Installed Options | Bluetooth Module, Wi-Fi Module, Peel-off Module, Cutter Module |
User Options | 8" External Paper Roll Holder |
Product Warranty | |
Printhead life | The earlier of 30 km usage or 1 year |
Platen roller life | The earlier of 30 km usage or 1 year |
Printer Warranty | 1 Year |
Physical Characteristics | |
Dimension | 504 mm × 257 mm × 297 mm (D × W × H) |
Weight | 11 Kg |
