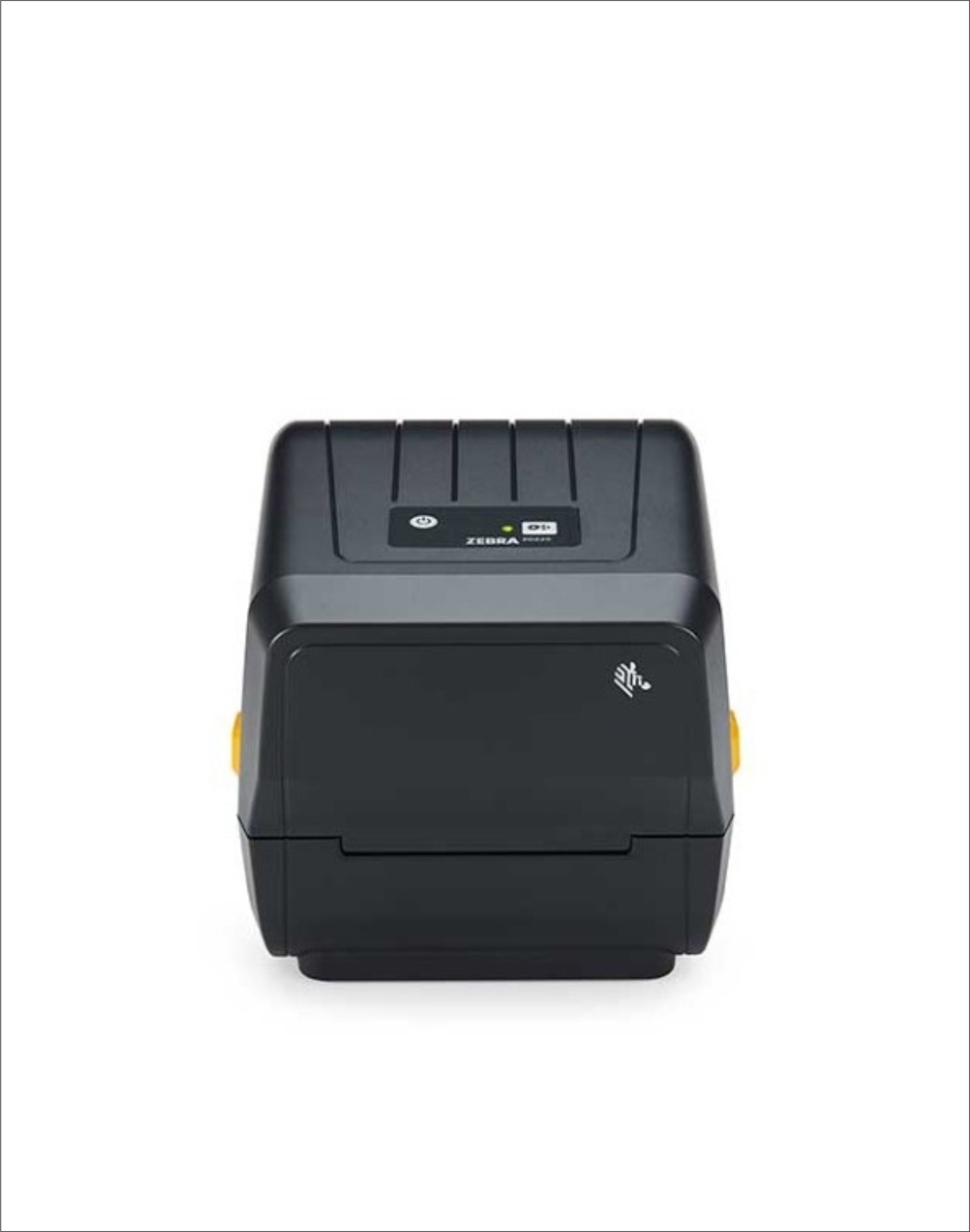

Zebra ZD230 barkod printeri sərfəli qiyməti və keyfiyyətli çap xidməti ilə seçilir. ZD230 termal çap texnologiyası və USB + Ethernet interfeysi ilə təchiz olunmuşdur. Logistika, yüngül istehsal, pərakəndə satış, səhiyyə və s. proqramlarında istifadə üçün idealdır.
Standard Features
| • Print methods: Thermal Transfer or Direct Thermal • ZPL and EPL programming languages • Single LED status indicator • Single button for feed/pause • USB connectivity • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR qualified • ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner |
Physical Characteristics
| Dimensions | Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H 267 mm L x 197 mm W x 191 mm H Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H 220 mm L x 176 mm W x 151 mm H |
| Weight | Thermal Transfer: 3.7 lbs./1.7 kg Direct Thermal: 2.5 lbs./1.1 kg |
Printer Specifications
| Resolution | 203 dpi/8 dots per mm |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm |
| Programmable Print Speed | 6 in./152 mm per second or 4 in./102 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XML |
Media and Ribbon Characteristics
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio |
|
| Ribbon Width | 1.33 in./33.8 mm - 4.3 in./109.2 mm |
| Ribbon Core I.D. |
|
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
